The MELLCOM 12×20 Louvered Pergola stands out for two features: six pull-down side screens built into the frame and louvers that rotate to 135 degrees. It covers 240 sq ft, placing it among the larger louvered pergolas. This review explains how the screens and roof work and what the listing leaves unanswered.
Our Verdict
MELLCOM’s 12×20 is a capable large pergola for buyers who want built-in screens rather than hanging curtains. Six semi-transparent screens lower on spring-loaded runners and retract into casings, and the crank roof splits 50/50 with an unusually wide 0 to 135 degree range. The aluminum frame comes with expansion anchors. The listing gives wind resistance only as a 60 to 90 mph range, omits dimensions and weight, and has almost no owner feedback.
MELLCOM 12x20 Louvered Pergola Adjustable Roof
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
Key Specifications
| Feature | Specification |
|---|---|
| Brand | MELLCOM |
| Nominal size | 12′ x 20′ |
| Floor area (listed) | 240 sq ft |
| Frame | Aluminum, matte dark gray powder coat |
| Roof control | Crank handles, two halves, 0 to 135 degrees |
| Screens | 6 pull-down, semi-transparent panels |
| Drainage | Guttering channels, drains through legs |
| Wind resistance (listed) | 60 to 90 mph |
| Snow load | Not listed |
| Anchoring | Pre-drilled bases, expansion anchor bolts |
| Use | Residential and commercial |
| Other sizes | 10×20 |
Design and Build Quality

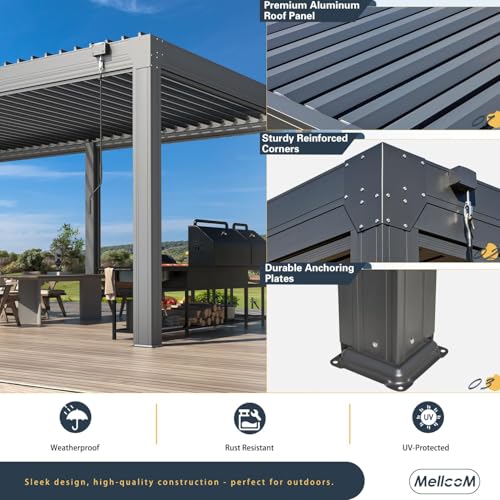

MELLCOM uses an aluminum frame powder coated in matte dark gray, which resists rust and fading. The company markets the pergola for both residential and commercial settings.
The listing does not include overall dimensions or a shipping weight. Ask MELLCOM for both before ordering so you can plan the base and delivery.
Roof and Weather Protection

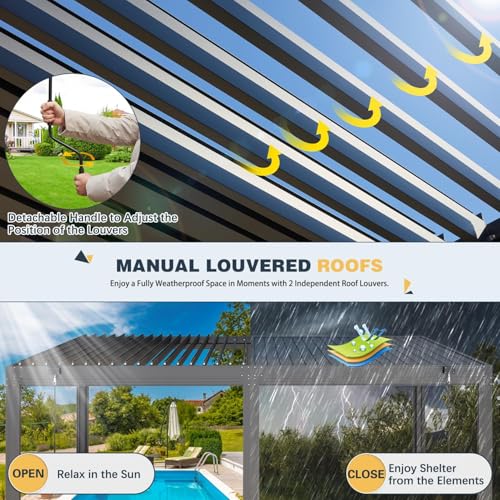

The roof is split evenly, and each half adjusts independently with crank handles from 0 to 135 degrees. The wide range lets the louvers tilt past vertical to angle shade toward low sun.

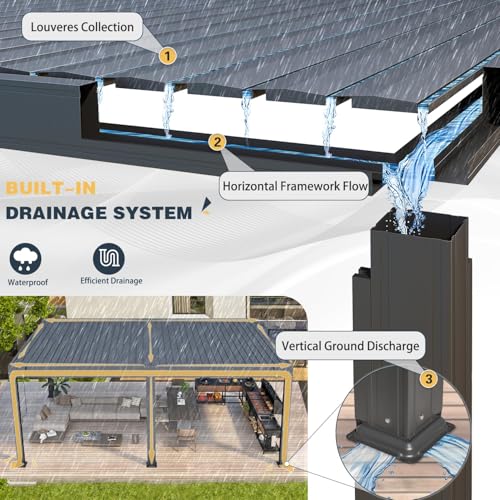

Rain flows into guttering channels and drains through the legs. MELLCOM describes the closed roof as a water-tight shelter.
Screens and Privacy

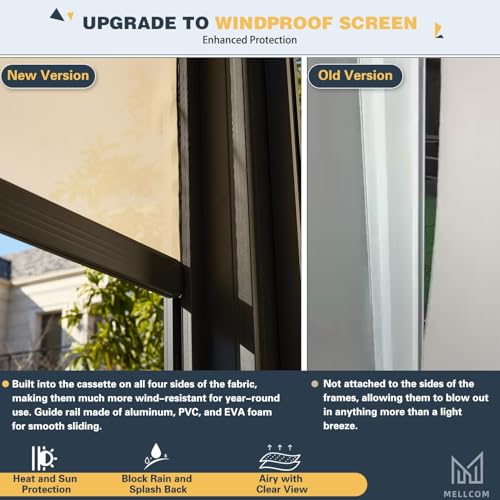

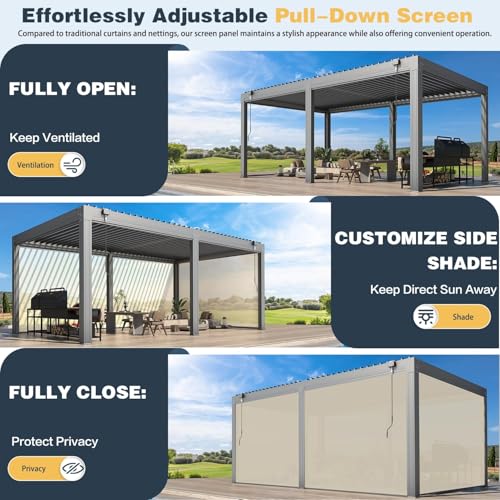

Six pull-down screen panels surround the pergola. They are slightly transparent, letting light through while giving some privacy and UV protection. Each lowers to any height on spring-loaded runners and retracts by hand into its casing.
Built-in screens stay tidier than curtains, but like any screen they catch wind. Raise them before storms.
Stability and Anchoring
Pre-drilled bases and expansion anchor bolts are included for flat, solid surfaces. MELLCOM lists wind resistance as 60 to 90 mph, which is a range rather than a rated figure. Ask which value applies to your configuration, especially with screens lowered.
No snow load is published, and a 240 sq ft structure may need a permit in many areas.
Assembly and Installation
MELLCOM says the pergola can be self-fitted in three to six hours with three or more people and a range of tools. With six screen cassettes, expect the longer end of that range.
With only one owner rating so far, there is little independent feedback on the screens’ durability.
Pros and Cons
| Pros | Cons |
|---|---|
| Six built-in pull-down screens | Wind resistance given only as a 60 to 90 mph range |
| Louvers adjust from 0 to 135 degrees | No dimensions or weight in the listing |
| Independent control of each roof half | No snow load rating |
| Aluminum frame with powder coat | Very limited owner feedback |
| Large 240 sq ft coverage | Needs three or more people to assemble |
| Expansion anchors included |
Who Should Buy It?
| Who Should Buy It? | Who Should Look Elsewhere? |
|---|---|
| Large patios that want built-in screens | Anyone who needs a firm wind rating |
| Owners who dislike loose curtains | Buyers who want full specifications before buying |
| Buyers who want wide louver adjustment | Shoppers who rely on owner reviews |
| Light commercial settings | Small yards |
Final Verdict
The MELLCOM 12×20 Louvered Pergola offers a neat built-in screen system and a flexible roof on a large aluminum frame. It is worth considering for big patios, provided you get dimensions and wind details from MELLCOM first. For related picks, see our roundup of louvered pergolas with curtains.
Frequently Asked Questions
How many screens does the MELLCOM 12×20 have?
Six pull-down screen panels.
How far do the louvers open?
From 0 to 135 degrees, with each half controlled independently.
What is its wind rating?
MELLCOM lists wind resistance of 60 to 90 mph.
How many people does assembly need?
MELLCOM recommends three or more people and estimates three to six hours.
